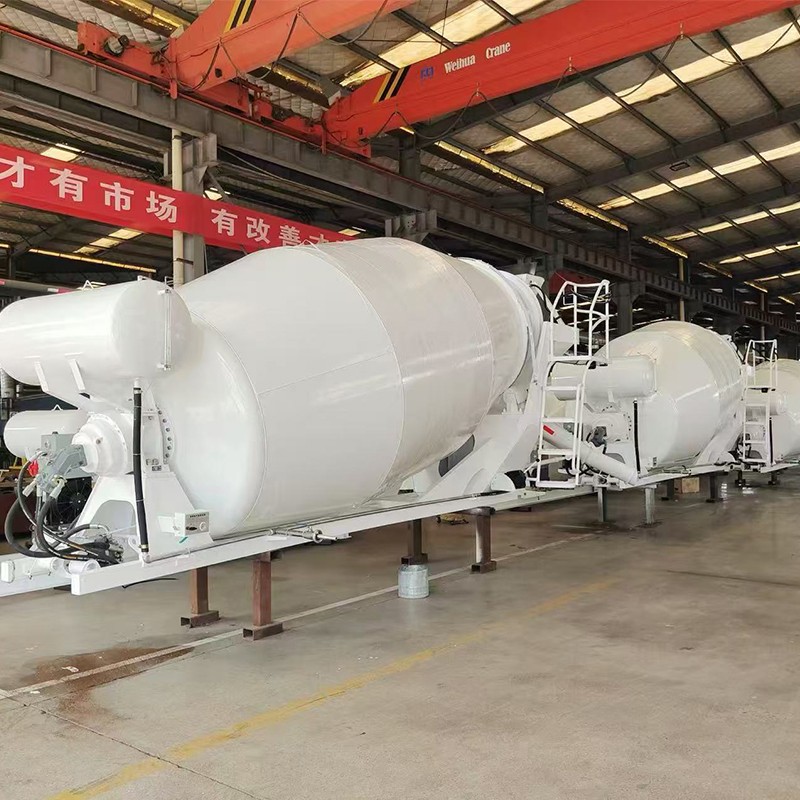

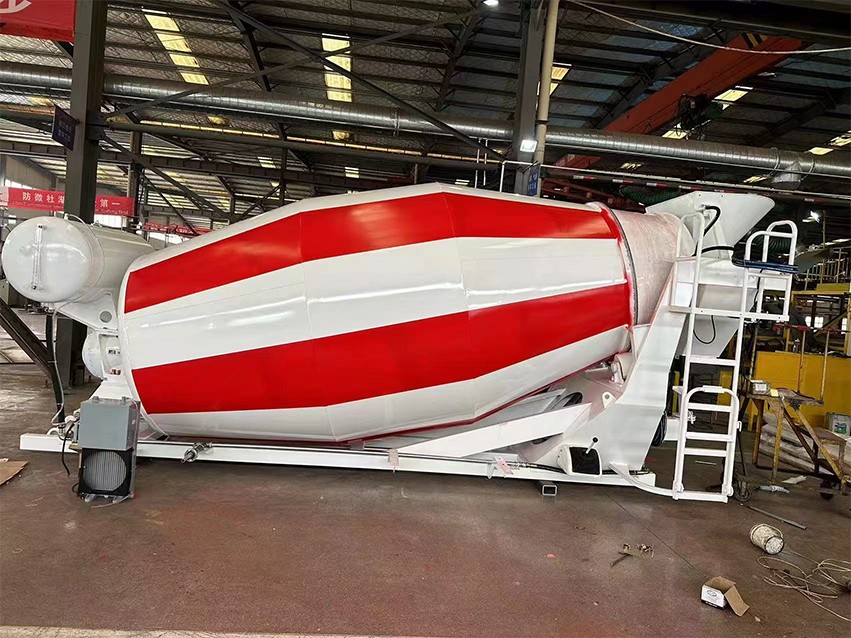

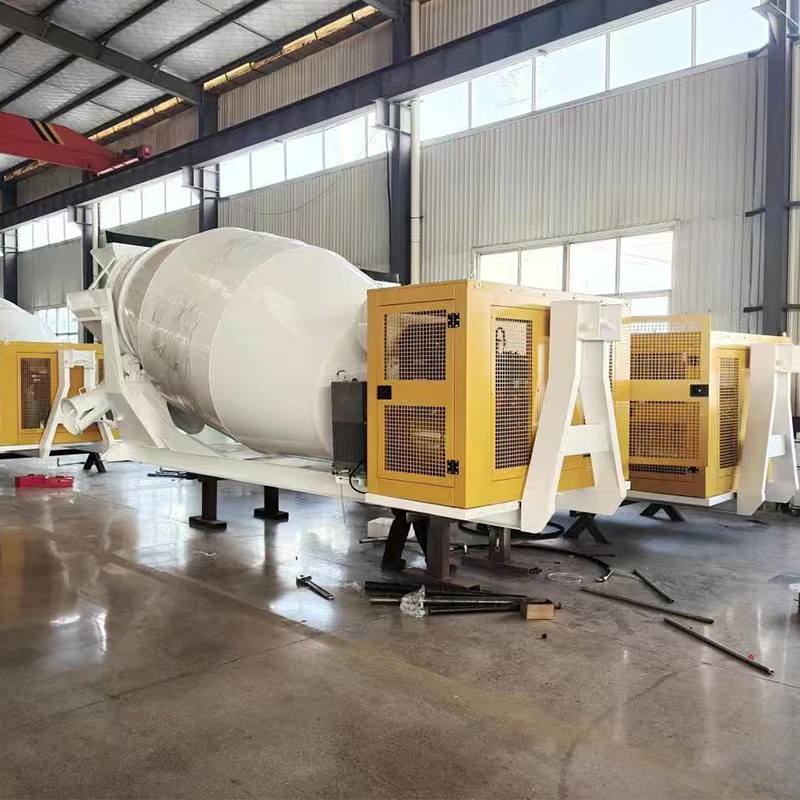

2.5-3-4-5-6立方搅拌上装 2.5-3-4-5-6 cubic mixing tops | |||||
方量Square measure | 2.5立方2.5 cubic | 3立方 3cubic | 4立方 4cubic | 5立方 5cubic | 6立方 6 cubic |
减速机Reduction gear | FX300 | FX300 | FX400 | FX400 | FX540 |
油泵 Oil pump | 开式齿轮25Open gear 25 | 开式齿轮2525Open gear 25 | 闭式齿轮45Closed gear 45 | 闭式齿轮60Closed gear 60 | 闭式齿轮60Closed gear 60 |
马达 motor | 开式叶片泵200Open vane pump 200 | 开式叶片泵200Open vane pump 200 | 闭式泵45Closed pump 45 | 闭式泵60Closed pump 60 | 闭式泵60Closed pump 60 |
上装长度 Coat length | 4479 | 4277 | 4890 | 5087 | 6151 |
上装高度 Top height | 1885 | 2150 | 2333 | 2424 | 2253 |
罐体最大直径Maximum diameter of tank | 1500 | 1850 | 1920 | 2000 | 2100 |
罐体材料 Tank material | Q345B4 | Q345B4 | Q345B4 | Q345B4 | Q345B4 |
几何容积（m³）Geometric volume (m³) | 7，1 | 8.05 | 9.08 | 9.85 | 11 |
有效容积（m³）Effective volume (m³) | 2.5立方 2.5 cubic | 3立方 3cubic | 4立方 4cubic | 5立方 5 cubic | 6立方 6 cubic |
水箱容积（L）Tank volume (L) | 350 | 350 | 350 | 400 | 400 |
出料速度（m³/min） | ＞1 | ＞1 | ＞1 | ＞1.5 | ＞1.5 |
供水方式 Water supply mode | 水泵供水Water supply by pump | 水泵供水Water supply by pump | 水泵供水Water supply by pump | 水泵供水Water supply by pump | 水泵供水Water supply by pump |
散热器 radiator | YS-18L | YS-18L | YS-18L | YS-18L | YS-18L |
PTO方向 PTO direction | 顺时针clockwise | 顺时针clockwise | 顺时针clockwise | 顺时针clockwise | 顺时针clockwise |
罐体转速（均速/min） Tank speed (average speed /min) | 9 | 9 | 9 | 11 | 11 |
搅拌罐水量（m³）Mixing tank water (m³) | 3.5 | 3.5 | 3.5 | 4.5 | 4.5 |
冷却方式Cooling mode | 油冷 Oil cooling | 油冷 Oil cooling | 油冷 Oil cooling | 油冷 Oil cooling | 油冷 Oil cooling |
装料方式Loading mode | 湿混 Wet mixing | 湿混 Wet mixing | 湿混 Wet mixing | 湿混 Wet mixing | 湿混 Wet mixing |
卸料槽长度 Length of discharge tank | 1200 | 1200 | 1200 | 1280 | 1280 |
水枪 Water gun | 有 There are | 有 There are | 有 There are | 有 There are | 有 There are |
水管(软管) | 3米 3 meters | 3米 3 meters | 3米 3 meters | 4米 Four meters | 4米 Four meters |
爬梯，平台 Ladder, platform | 有 There are | 有 There are | 有 There are | 有 There are | 有 There are |
出料口橡胶护套Discharge port rubber sheath | 有 There are | 有 There are | 有 There are | 有 There are | 有 There are |
轨道保护带 Track protection belt | 有 There are | 有 There are | 有 There are | 有 There are | 有 There are |
挡泥板 fender | 有 There are | 有 There are | 有 There are | 有 There are | 有 There are |
