Thermoplastic Heater

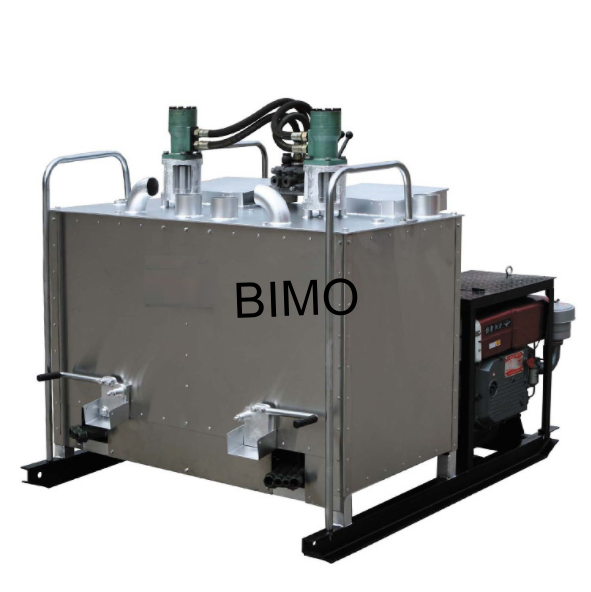

800II Double-Cylinder Hydraulic Kettle

PRODUCTION PARAMETERS

Diesel power：                       13.2KW(18HP)  diesel

Diesel start：                          Electric/Hand cranking

Hydraulic motor power：       13KW

Transport mode：                  Hydraulic

Stirring Device：                    Protective hydraulic

Heating mode：                     LP

Tank NO：                             2

Tank volume：                       40kg*2(16 bag painting )

Tank structure：                    Suspension type

Insulation construction：        Ring type 3 layer insulation

Tank base material：             HCS alloy

Tank base thickness：          10mm

Paneling material：               Stainless steel

Diesel Oil tank volume：        70L

Heating temperature：            0-300℃

Suggest dump temperature：    180-220℃

Machine weight：

 N.W.                                     900kgs/

G.W.                                      1100kgs

Machine size：                     1650×1550×1460mm

                                       LZ400 single cylinder thermoplastic preheat kettle

Technical Parameters:

1. Engine: 7.7PS diesel engine

2. Hydraulic system: hydraulic reversing control valve, forward and reverse mixing, stepless speed change

3. Hydraulic motor: BM type

4. Hydraulic tank volume: 40 liters

5. The capacity of the kettle: 350 liters of stainless steel cylinder, high carbon steel bottom, vertical pulp mixer

6. Tructure: frame structure, between the inner body of the kettle and the outer cover plate with insulation board insulation material

7. Heating system: petroleum liquefied gas. High-efficiency energy-saving burner / direct injection furnace

8. Safety device: specially designed overload overflow device to prevent misoperation

9. Size and weight: 1750 × 800 × 1600mm

10. Net weight: 350kg
